[android] MPAndroidChart를 활용한 실시간 차트 그리기

* Git

https://github.com/PhilJay/MPAndroidChart

PhilJay/MPAndroidChart

* 소스코드 출처 블로그

http://blog.naver.com/PostView.nhn?blogId=skyvvv624&logNo=221062100445

[안드로이드 차트]MPAndroid Chart

* 속성 정리 블로그

https://namget.tistory.com/entry/%EC%95%88%EB%93%9C%EB%A1%9C%EC%9D%B4%EB%93%9C-MPAndroidChart-LineChart-%EC%86%8D%EC%84%B1-%EC%A0%95%EB%A6%AC-Example

[안드로이드] MPAndroidChart LineChart 속성 정리 (Example)



---

build.gradle (Project)

allprojects {
    repositories {
        ..
        maven { url "https://jitpack.io" }
    }
}



build.gradle (App)

    implementation 'com.github.PhilJay:MPAndroidChart:v3.0.0'



activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <com.github.mikephil.charting.charts.LineChart
        android:id="@+id/chart"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

</LinearLayout>



MainActivity.java

import androidx.appcompat.app.AppCompatActivity;

import android.graphics.Color;
import android.os.Bundle;

import com.github.mikephil.charting.charts.LineChart;
import com.github.mikephil.charting.components.XAxis;
import com.github.mikephil.charting.components.YAxis;
import com.github.mikephil.charting.data.Entry;
import com.github.mikephil.charting.data.LineData;
import com.github.mikephil.charting.data.LineDataSet;
import com.github.mikephil.charting.interfaces.datasets.ILineDataSet;

public class MainActivity extends AppCompatActivity {

    private LineChart chart;
    private Thread thread;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        chart = (LineChart) findViewById(R.id.chart);

        chart.getXAxis().setPosition(XAxis.XAxisPosition.BOTTOM);

        chart.getAxisRight().setEnabled(false);
        chart.getLegend().setTextColor(Color.WHITE);
        chart.animateXY(2000, 2000);
        chart.invalidate();

        LineData data = new LineData();
        chart.setData(data);

        feedMultiple();
    }

    private void addEntry() {
        LineData data = chart.getData();
        if (data != null) {
            ILineDataSet set = data.getDataSetByIndex(0);

            if (set == null) {
                set = createSet();
                data.addDataSet(set);
            }

            data.addEntry(new Entry(set.getEntryCount(), (float) (Math.random() * 40) + 30f), 0);
            data.notifyDataChanged();

            chart.notifyDataSetChanged();
            chart.setVisibleXRangeMaximum(10);
            chart.moveViewToX(data.getEntryCount());
        }
    }

    private LineDataSet createSet() {

        LineDataSet set = new LineDataSet(null, "Dynamic Data");
        set.setFillAlpha(110);
        set.setFillColor(Color.parseColor("#d7e7fa"));
        set.setColor(Color.parseColor("#0B80C9"));
        set.setCircleColor(Color.parseColor("#FFA1B4DC"));
        set.setCircleColorHole(Color.BLUE);
        set.setValueTextColor(Color.WHITE);
        set.setDrawValues(false);
        set.setLineWidth(2);
        set.setCircleRadius(6);
        set.setDrawCircleHole(false);
        set.setDrawCircles(false);
        set.setValueTextSize(9f);
        set.setDrawFilled(true);

        set.setAxisDependency(YAxis.AxisDependency.LEFT);
        set.setHighLightColor(Color.rgb(244, 117, 117));

        return set;
    }

    private void feedMultiple() {
        if (thread != null)
            thread.interrupt();

        final Runnable runnable = new Runnable() {
            @Override
            public void run() {
                addEntry();
            }
        };

        thread = new Thread(new Runnable() {
            @Override
            public void run() {
                while (true) {
                    runOnUiThread(runnable);
                    try {
                        Thread.sleep(3000);
                    } catch (InterruptedException ie) {
                        ie.printStackTrace();
                    }
                }
            }
        });
        thread.start();
    }

    @Override
    protected void onPause() {
        super.onPause();
        if (thread != null)
            thread.interrupt();
    }
}

---

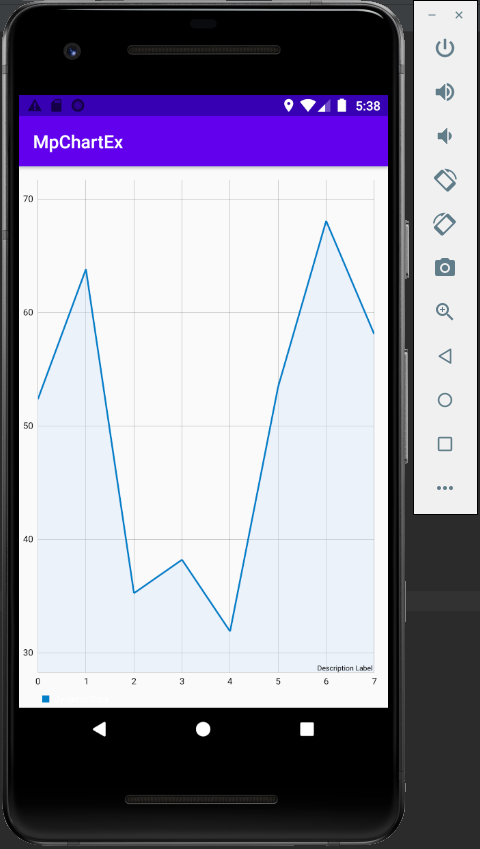

결과물
